Introduction

This vignette describes an implementation of the Commensurate Power Prior.

Set working directory, import functions and configurations

List packages to load, and install them if necessary.

Mathematical description of the model

The location commensurate power prior is given by Hobbs et al (2011):

π(θT,γ,τ|𝐃𝐒)=∫π(θT|θS,τ)ℒ(θS|𝐃S)γπ0(θS)∫ℒ(θS|𝐃S)γπ0(θS)dθSdθS×p(γ|τ)p(τ) \pi(\theta_T, \gamma, \tau| \mathbf{D_S}) = \int \pi(\theta_T|\theta_S, \tau) \frac{\mathcal{L}(\theta_S | \mathbf{D}_S)^\gamma \pi_0(\theta_S)}{\int \mathcal{L}(\theta_S | \mathbf{D}_S)^\gamma \pi_0(\theta_S) d\theta_S}d\theta_S \times p(\gamma|\tau) p(\tau)

where π0(θS)\pi_0(\theta_S) is an initial prior for θS\theta_S. Note that, compared to equation (4) in Hobbs et al (2011), the prior differs slightly. Indeed, in this paper, the prior π0(θS)\pi_0(\theta_S) is omitted, and dθSd\theta_S is misplaced.

Hobbs et al (2011) chose the following distributions:

θT|θS,τ∼𝒩(θS,1τ), \theta_T|\theta_S, \tau \sim \mathcal{N}\left(\theta_S, \frac{1}{\tau}\right),

and

γ|τ∼Beta(g(τ),1), \gamma | \tau \sim Beta(g(\tau),1),

where g(τ)g(\tau) is a positive function of τ\tau that is small for τ\tau closed to zero and large for large values of τ\tau.

When the evidence for commensurability is weak, τ\tau is forced toward zero, increasing the variance of the commensurate prior for θT\theta_T. So the amount of borrowing can be adapted in two ways: through the specification of p(γ|τ)p(\gamma|\tau), or p(τ)p(\tau).

Gaussian case

Hobbs et al (2011) show that, in the Gaussian likelihood case (equation 9):

p(θT∣𝐃S,𝐃T,γ,τ,σ2)∝N(θT|γNSτσ2θ̂S+NTuθ̂TγNSτσ2+NTu,uσ2γNSτσ2+NTu) p\left(\theta_T \mid \mathbf{D}_{S}, \mathbf{D}_T, \gamma, \tau, \sigma^2\right) \propto N\left(\theta_T \left\lvert\, \frac{\gamma N_S \tau \sigma^2 \hat{\theta}_S+N_T u \hat{\theta}_T}{\gamma N_S \tau \sigma^2+N_T u}\right., \frac{u \sigma^2}{\gamma N_S \tau \sigma^2+ N_T u}\right)

where u=γNS+σ̂S2τu=\gamma N_S+\hat{\sigma}_S^2 \tau, and p(γ,τ∣𝐃S,𝐃T,σ2)∝N(θ̂T−θ̂S∣0,σ2NT+1τ+σ̂S2γNS)×Beta⁡(γ∣g(τ),1)×π(τ). \begin{aligned} p\left(\gamma, \tau \mid \mathbf{D}_S, \mathbf{D}_T, \sigma^2\right) \propto & N\left(\hat{\theta}_T-\hat{\theta}_S \mid 0, \frac{\sigma^2}{N_T}+\frac{1}{\tau}+\frac{\hat{\sigma}_S^2}{\gamma N_S}\right) \\ & \times \operatorname{Beta}\left(\gamma \mid g(\tau), 1\right) \times \pi(\tau) . \end{aligned}

Implementation of the model in Stan

case_study_config <- yaml::yaml.load_file(system.file("conf/case_studies/belimumab.yml", package = "BExTE"))


source_data <- ObservedSourceData$new(case_study_config)
summary_measure_likelihood <- case_study_config$summary_measure_likelihood
endpoint <- case_study_config$endpoint

target_data <- ObservedTargetData$new(treatment_effect_estimate = case_study_config$target$treatment_effect, treatment_effect_standard_error = case_study_config$target$standard_error, target_sample_size_per_arm = as.integer(case_study_config$target$total / 2), summary_measure_likelihood = case_study_config$summary_measure_likelihood)
method_parameters <- list(
  initial_prior = "noninformative", # This corresponds to the fact that the posterior for the adults data is derived from an uninformative prior (for consistency with other methods). May be removed in future releases.
  heterogeneity_prior = list(family = "inverse_gamma", alpha = 1 / 3, beta = 1) # list(family = "cauchy", location = 0, scale = 10)
  # list(family = "half_normal", std_dev = 1)
)

method_parameters <- list(
  initial_prior = "noninformative", # This corresponds to the fact that the posterior for the adults data is derived from an uninformative prior (for consistency with other methods). May be removed in future releases.
  heterogeneity_prior = # list(family = "cauchy", location = 0, scale = 1)
    list(family = "half_normal", std_dev = 5)
)

env = "full"
config_dir <- paste0(system.file(paste0("conf/", env), package = "BExTE"), "/")
mcmc_config <- yaml::read_yaml(paste0(config_dir, "/mcmc_config.yml"))

model <- Model$new()

model <- model$create(
  case_study_config = case_study_config,
  method = "commensurate_power_prior",
  method_parameters = method_parameters,
  source_data = source_data,
  mcmc_config = mcmc_config
)

print(model$stan_model_code)
## [1] "\n                                      functions {\n                                        real g_function(real log_tau) {\n                                          return fmax(log_tau, 1); // Define g(tau)\n                                        }\n                                      }\n\n                                      data {\n                                        int<lower=0,upper=2> prior_type; // Type of prior on the commensurability parameter; 0 for inverse_gamma, 1 for half normal, 2 for Cauchy\n                                        int<lower=1> NS;       // Number of samples in dataset S\n                                        int<lower=1> NT;       // Number of samples in dataset T\n                                        real<lower=0> target_sampling_variance;  // Known variance of the target data\n                                        real<lower=0> prior_variance; // Prior variance component\n                                        real source_treatment_effect_estimate;      // Estimate from dataset S\n                                        real target_treatment_effect_estimate;      // Estimate from dataset T\n                                        real std_dev; // Parameter for the half normal prior\n                                        real location; // Location parameter for the Cauchy prior\n                                        real scale; // Scale parameter for the Cauchy prior\n                                        real alpha; // Parameter for the inverse_gamma prior\n                                        real beta; // Pocation parameter for the inverse_gamma prior\n                                      }\n\n                                      parameters {\n                                        real<lower=0, upper=1> power_parameter;   // Power parameter\n                                        // Sampled on the log scale, which Stan's <lower=0> transform on tau\n                                        // already did internally, so that tau itself is never formed where\n                                        // it would overflow: a Cauchy(0, 30) prior on log(tau) puts about 3%\n                                        // of its mass beyond log(tau) = +-709, the limit of exp().\n                                        real log_tau;     // Log commensurability parameter\n                                        real target_treatment_effect;          // Target treatment effect\n                                      }\n\n                                      model {\n                                        // Local to the model block: these are\n                                        // intermediate quantities, and declaring\n                                        // them as transformed parameters would\n                                        // write extra columns per draw to the\n                                        // output CSV for no downstream use.\n                                        // Every expression below is written in\n                                        // 1 / tau rather than tau, so it stays\n                                        // finite however large tau grows.\n                                        real a = power_parameter * NS;\n                                        // Capped so that no product below overflows. The marginal\n                                        // likelihood weights log(tau) < -600 by about exp(-300), so\n                                        // the cap moves no posterior mass that a double can represent.\n                                        real inverse_tau = exp(fmin(-log_tau, 600));\n                                        real u_over_tau = a * inverse_tau + prior_variance;\n                                        real denominator = a * target_sampling_variance + NT * u_over_tau;\n                                        real marginal_variance = target_sampling_variance / NT\n                                                                  + inverse_tau\n                                                                  + prior_variance / a;\n\n                                        // Priors\n                                        // Each prior is stated on its own quantity and carried to log_tau\n                                        // by the log Jacobian of that change of variables; constant terms\n                                        // are dropped.\n                                        if (prior_type == 0) {\n                                          // tau^2 ~ InvGamma(alpha, beta). With s = log(tau^2) = 2 * log_tau\n                                          // the density of s is inv_gamma_lpdf(exp(s)) + s, which reduces to\n                                          // -alpha * s - beta * exp(-s); ds / dlog_tau = 2 is constant.\n                                          // Writing it out avoids forming tau^2, which overflows at the\n                                          // log(tau) of about 354 that alpha = 1/1000 reaches.\n                                          target += -2 * alpha * log_tau - beta * exp(-2 * log_tau);\n                                        } else if (prior_type == 1){\n                                          // tau ~ HN(std_dev), plus the log Jacobian of tau = exp(log_tau).\n                                          // The half-normal's normalising constant is fixed by the data.\n                                          target += normal_lpdf(exp(log_tau) | 0, std_dev) + log_tau;\n                                        } else if (prior_type == 2){\n                                          // The prior is on log_tau itself, so there is no Jacobian.\n                                          log_tau ~ cauchy(location, scale);\n                                        }\n\n\n                                        power_parameter ~ beta(g_function(log_tau), 1);\n\n                                        // Marginal target-data likelihood for the borrowing\n                                        // parameters. Together with the conditional distribution\n                                        // below, this gives the joint posterior from equation (9)\n                                        // of Hobbs et al. (2011). Omitting this term leaves tau and\n                                        // power_parameter distributed according to their priors.\n                                        target_treatment_effect_estimate ~ normal(\n                                          source_treatment_effect_estimate,\n                                          sqrt(marginal_variance));\n\n                                        // Equation (9) of Hobbs et al. (2011) with numerator and\n                                        // denominator divided by tau.\n                                        target_treatment_effect ~ normal(\n    (a * target_sampling_variance * source_treatment_effect_estimate + NT * u_over_tau * target_treatment_effect_estimate) /\n    denominator,\n    sqrt(u_over_tau * target_sampling_variance / denominator));\n                                      }\n\n                                      generated quantities {\n                                        real tau = exp(log_tau);     // Commensurability parameter\n                                      }\n                                      "
model$inference(target_data)

In the inference method, the data are prepared for use with Stan using:

# Prepare the data for MCMC inference
data <- model$prepare_data(target_data)

Then, draws are sampled from the posterior following the configuration specified in mcmc_config.

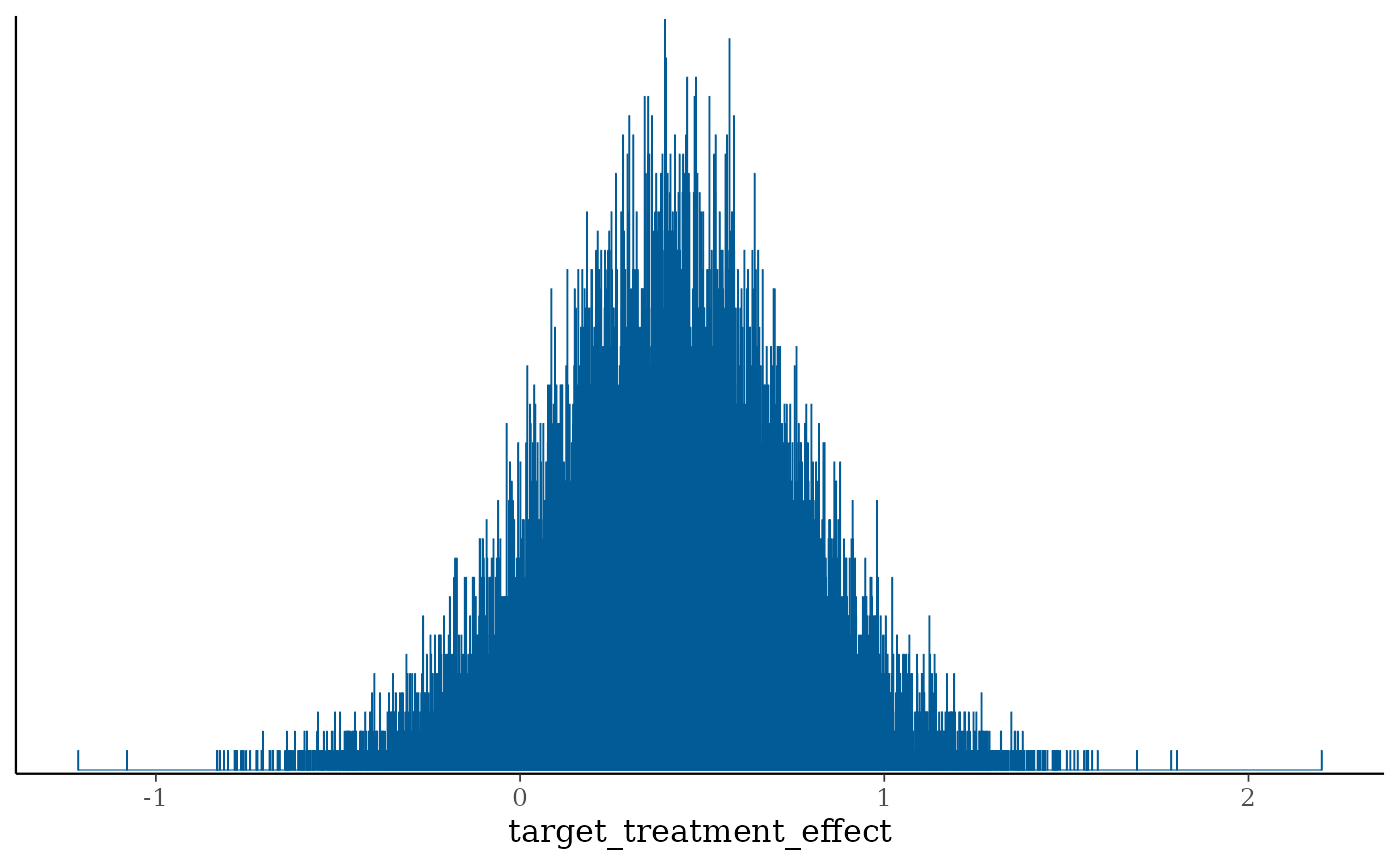

bayesplot::mcmc_hist(model$fit$draws("target_treatment_effect"), binwidth = 0.001)

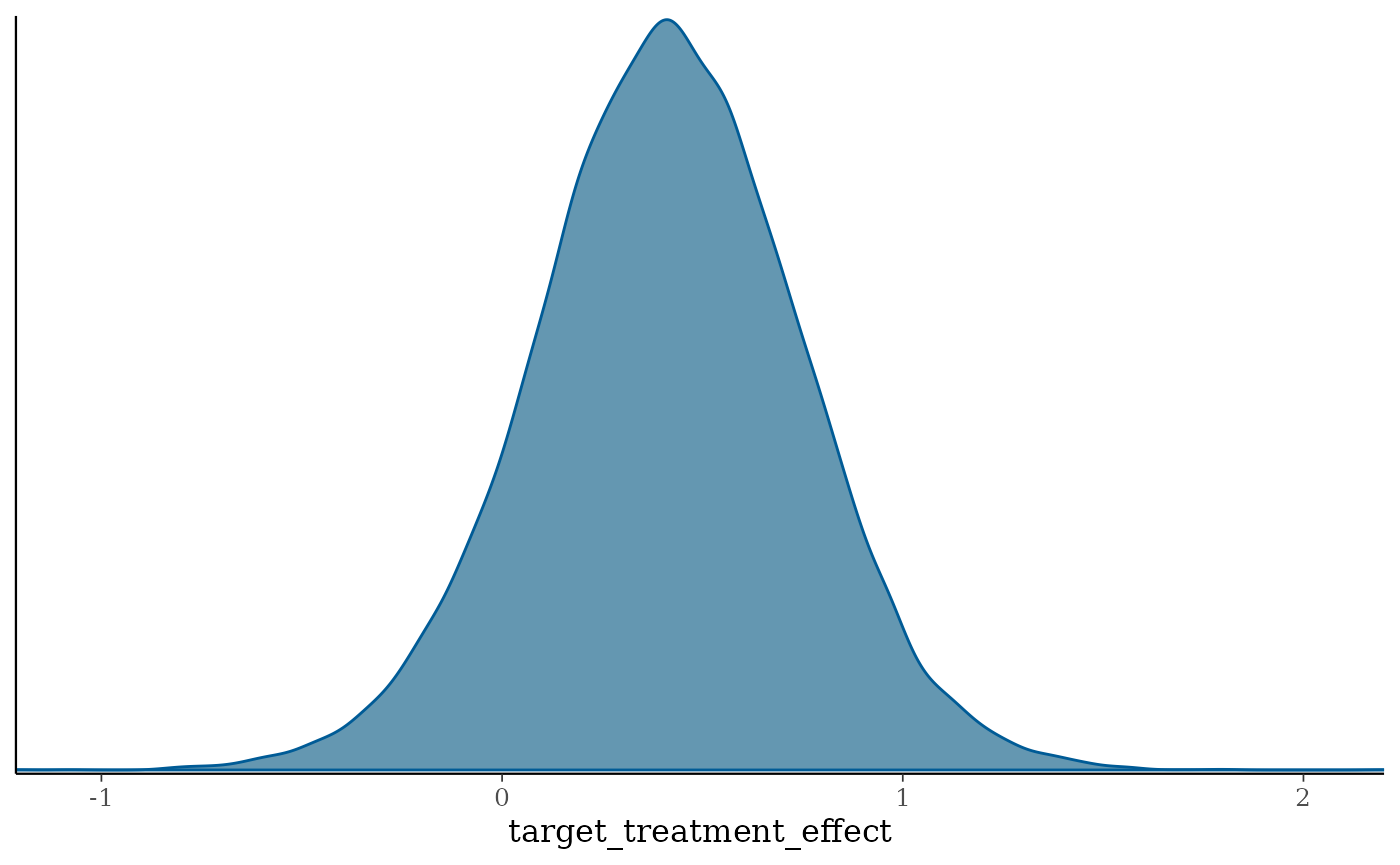

posterior <- model$fit$draws("target_treatment_effect")
bayesplot::color_scheme_set("blue")
bayesplot::mcmc_dens(posterior, pars = c("target_treatment_effect"))

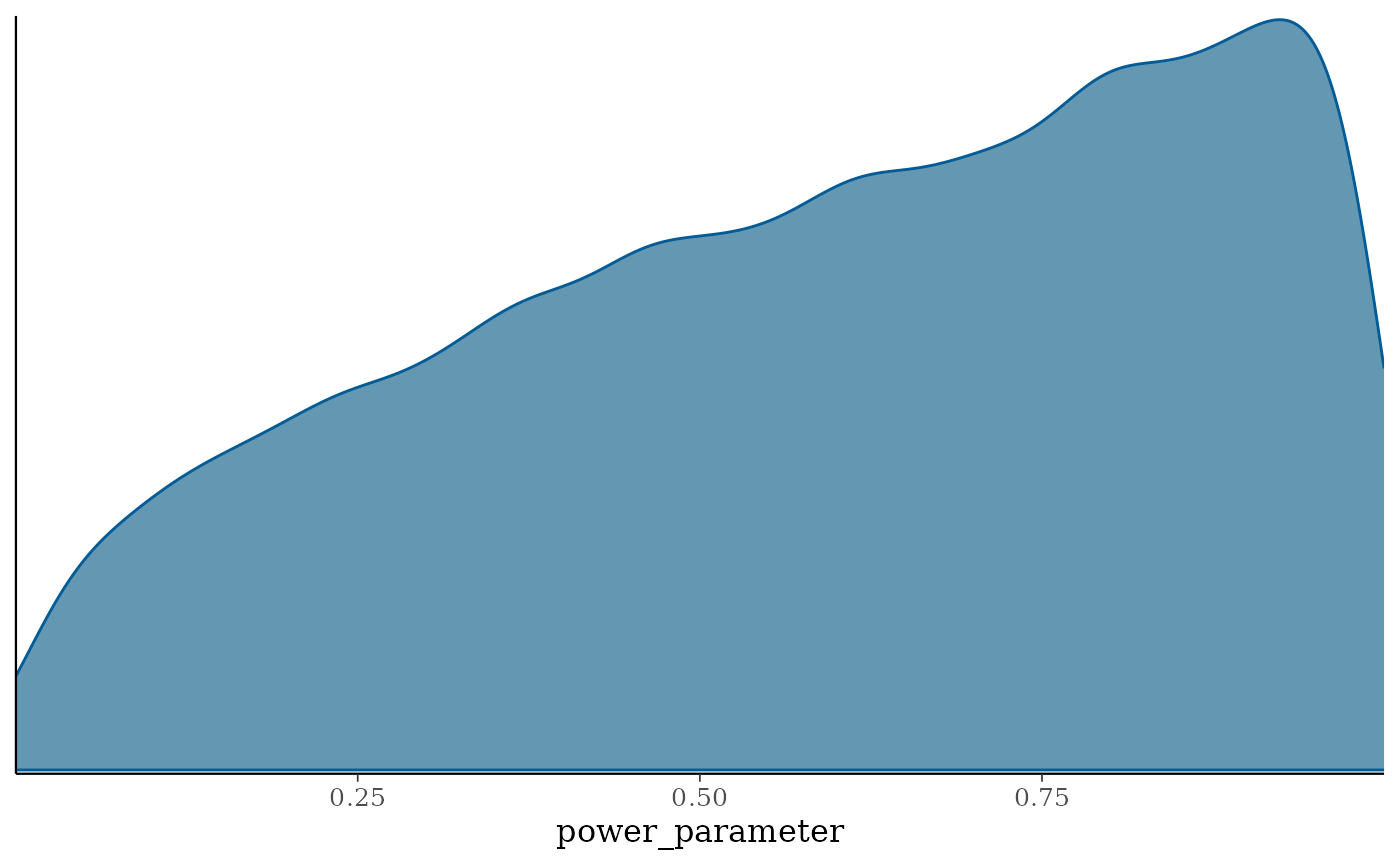

Posterior distribution of the power parameter:

posterior <- model$fit$draws("power_parameter")
bayesplot::color_scheme_set("blue")
bayesplot::mcmc_dens(posterior, pars = c("power_parameter"))

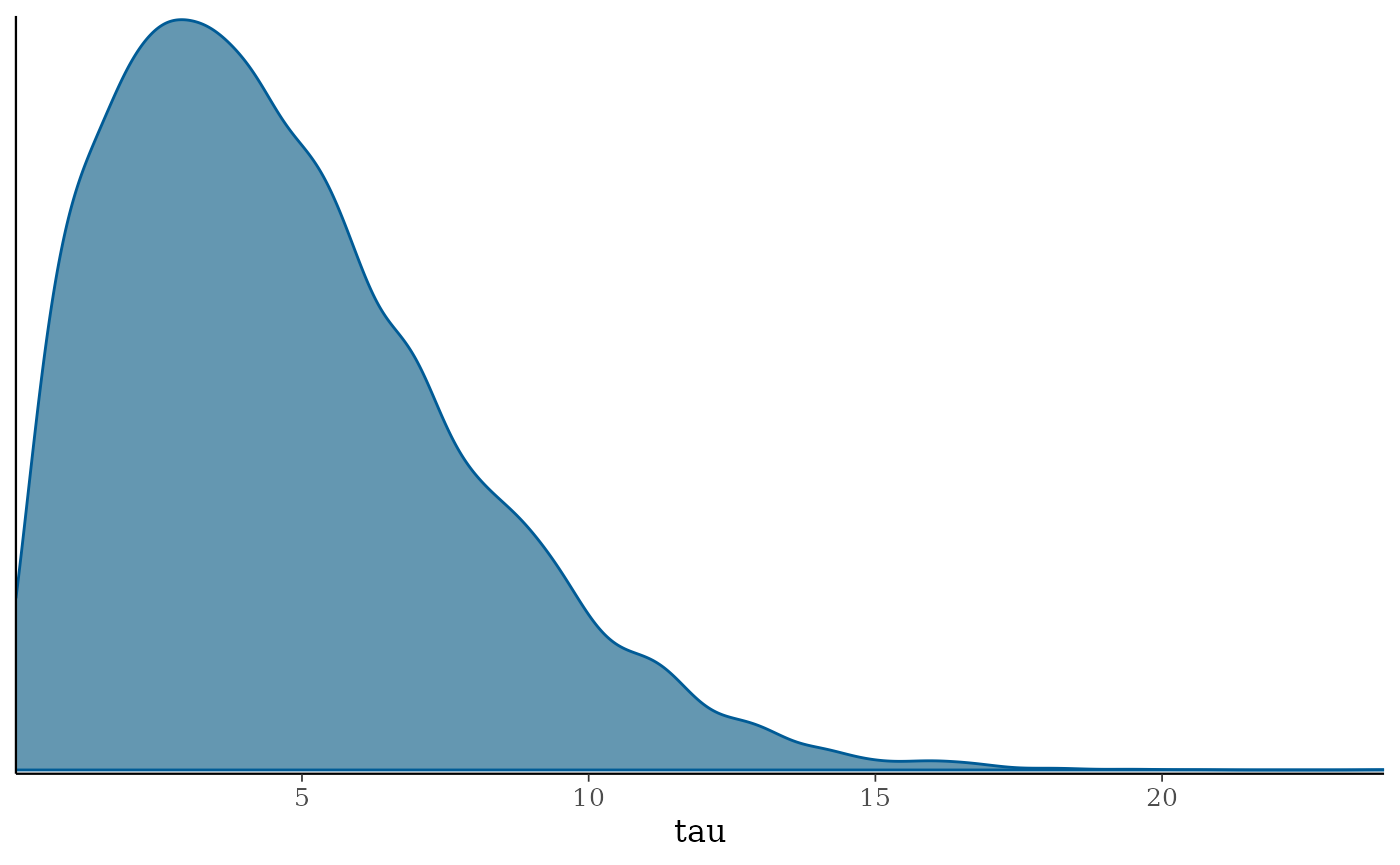

Posterior distribution of the heterogeneity parameter:

posterior <- model$fit$draws("tau")
bayesplot::color_scheme_set("blue")
bayesplot::mcmc_dens(posterior, pars = c("tau"))

library(posterior)
draws_array <- as_draws_array(model$fit)
library(bayesplot)

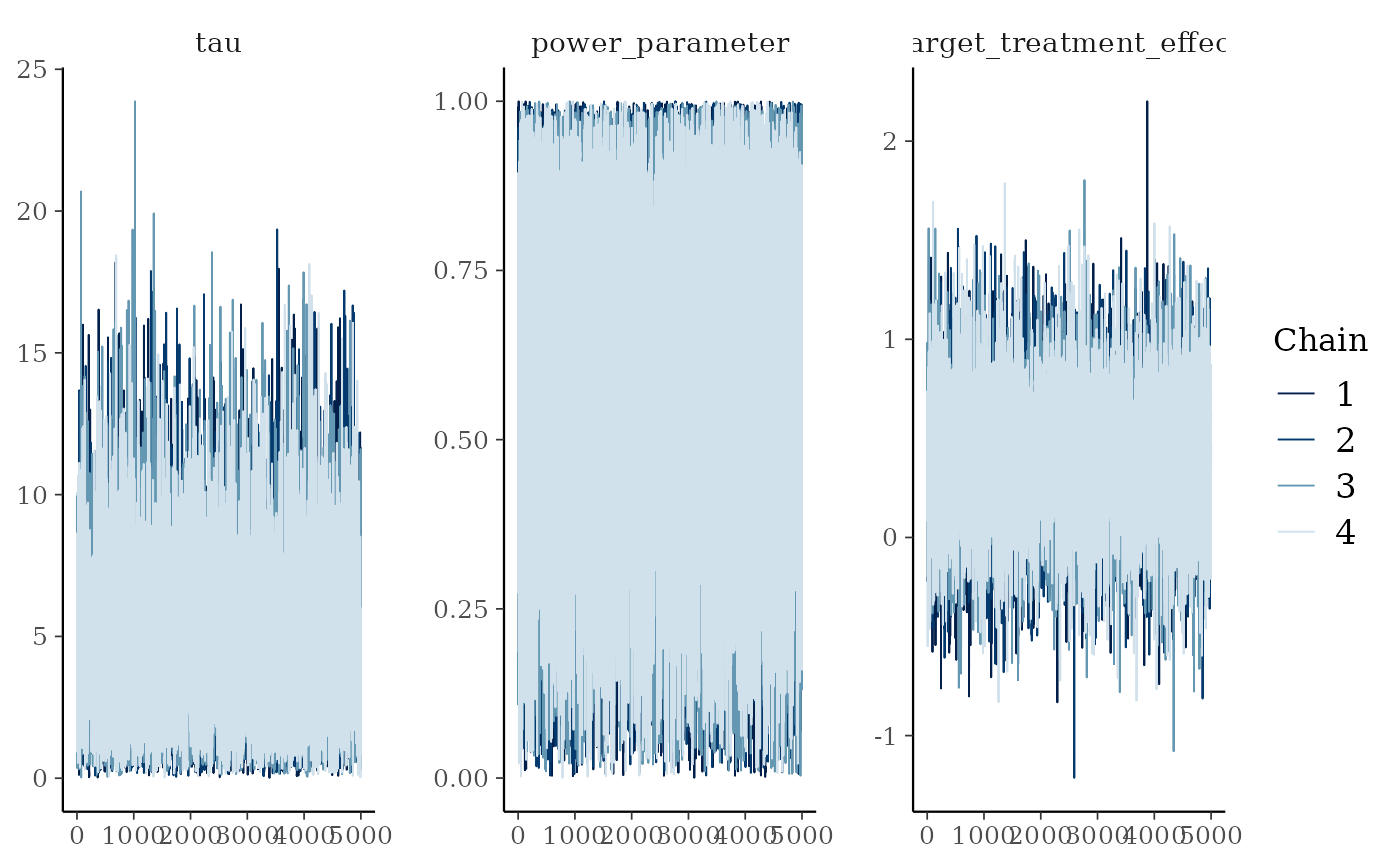

mcmc_trace(draws_array, pars = c("tau", "power_parameter", "target_treatment_effect"))

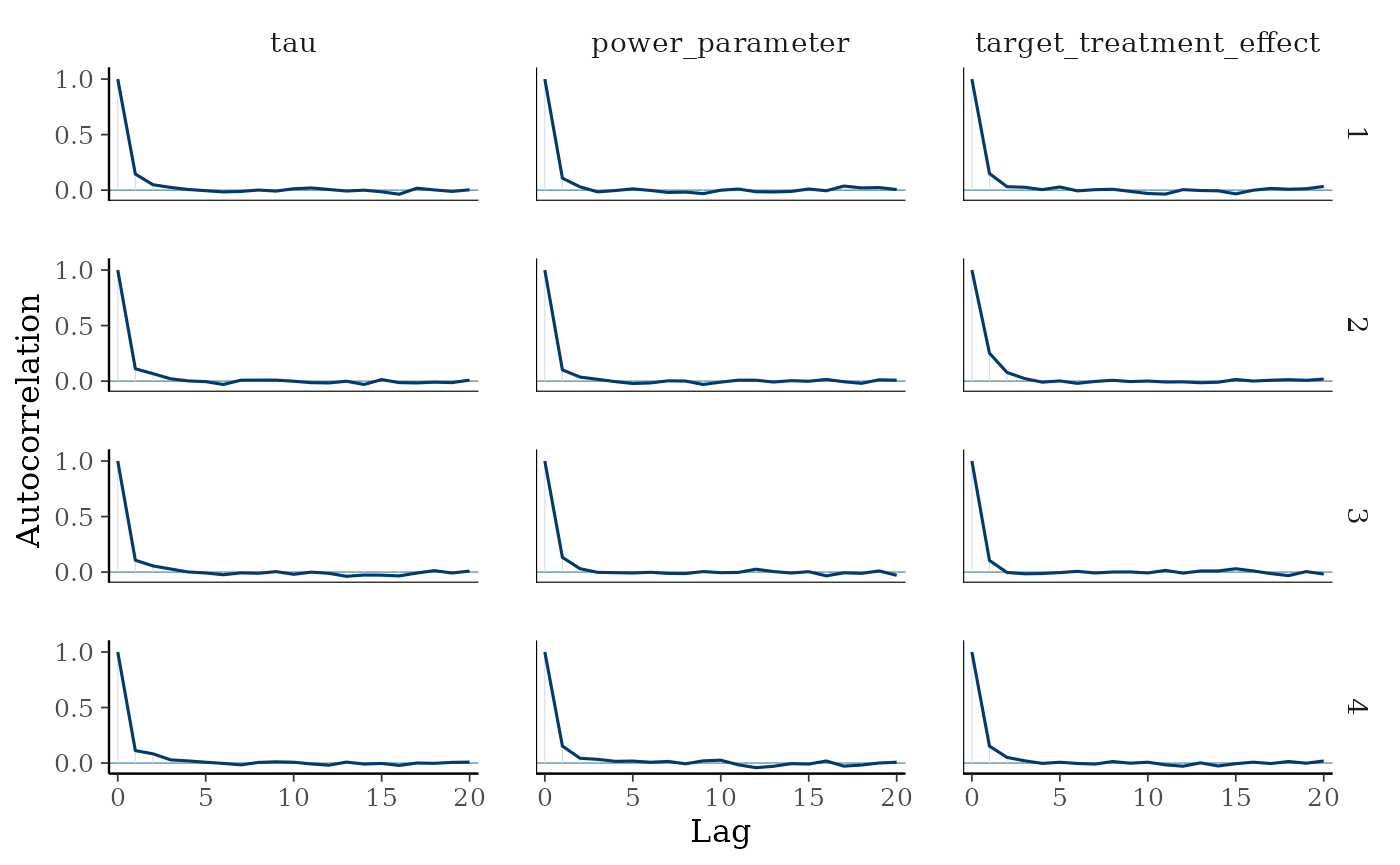

mcmc_acf(draws_array, pars = c("tau", "power_parameter", "target_treatment_effect"))

mcmc_diagnostics <- model$fit$diagnostic_summary()

n_draws <- mcmc_config$chain_length * mcmc_config$num_chains

# MCMC Effective Sample Size
mcmc_ess <- bayesplot::neff_ratio(model$fit) * n_draws

mcmc_ess <- mcmc_ess[["target_treatment_effect"]]
print(mcmc_ess)
## [1] 13918.89
bayesplot::neff_ratio(model$fit)
##         power_parameter                 log_tau target_treatment_effect
##               0.7492752               0.4397801               0.6959446
##                     tau
##               0.7006583
rhat_values <- bayesplot::rhat(model$fit)
rhat <- rhat_values["target_treatment_effect"]
print(rhat)
## target_treatment_effect
##                1.000073
# number of divergences reported is the sum of the per chain values
n_divergences <- sum(mcmc_diagnostics$num_divergent)
print(n_divergences)
## [1] 0
